Características - Cargadora de ruedas Dragon Machinery ZL28F nuevo

Palas cargadoras Cargadora de ruedas
Informacion principal
Ref. cliente : 84295100ZL28F
Ref. web : 1106878
Carrocería Cargadora de ruedas
Marca Dragon Machinery
Modelo ZL28F
Estado nuevo
Año 01/01/2019
Características Dragon Machinery ZL28F
Potencia102 CV
Peso6.2 T
Motor
Marca del motor-
Gama del motor-
Potencia del motor-
Norma Stage-
Norma Tier-
Equipamiento Cargadora Dragon Machinery
  • Circuito hidráulico auxiliar
  • Pinza
  • Luz giratoria
  • Equipamiento paletizador
  • Pinzas para madera
  • Hoyadora
Características Dragon Machinery ZL28F
N° de horas5 horas
Pala
  • Pala cargadora
  • Horquillas
  • Pala hoyadora
Número de palas1
Precisiones palasHeavy Duty Bucket with teeth Rated Bucket Capacity: 1.4CBM Bucket Width: 2150mm
Neumáticos
Tipo de neumáticoscon muescas
Estado y dimensiones de los neumáticosBrand New Pneumatic Tyres Tyre Type Specification: 16/70-24-16PR Front Tyre Pressure: 0.40Mpa Rear Tyre Pressure: 0.35Mpa
Equipamiento Cargadora Dragon Machinery
Tipo de enganche rápidoHidráulico
Información complementaria Dragon Machinery ZL28F
Información MotorEngine Model: DONGFANGHONG YT4B2Z-24 Turbocharged Engine Engine Type: Four-cylinder, Inline, Water-cooled Evaporative, Four-stroke Diesel Engine Rated Engine Power: 74.9kW Rated Engine Speed: 2400rpm Min. Fuel Consumption Rate: 210g/kW.h
Equipamiento cabina
  • Autorradio
  • Alarma de marcha atrás
  • Climatización
  • Asiento con suspensión
Comentarios
2.8 Ton compact loader, 2.8T articulated wheel loader, 2.8 Ton compact front loader, 2.8T automatic transmission loader, 1 ton automatic transmission wheel loader, 2.8Ton front end loader, 2.8T CE wheel loader, 2.8T front wheel loader, 2.8 Ton front loader, 2.8 Ton small loader, 2.8 Ton wheel loader, 2.8 T front loader, 2800kg front loader, 2800kg small loader, 2800kg compact wheel loader, 2800kg compact loader, 2800kg front end loader, 2800kg compact front loader, 2800kg front end loader, CE approved 2.8T front wheel loader, CE certified 2.8 ton front end wheel loader, 2.8 ton wheel loader with CE mark, CE front loader with 2.8T capacity, CE front end loader with 2.8 ton capacity, CE small loader with 2800kg capacity, 2.8T wheel loader, 2.8ton wheel loader, 2.8 ton wheel loader, 2.8T compact wheel loader, 2800kg loaders, compact wheel loaders, new wheel loader, 4WD wheel loader

2.8 ton Capacity automatic transmission wheel loader with enclosed tilt cabin, adjustable suspension seat, digital radio & MP3 player, reversing camera, top beacon; and optional hydraulic joystick control, hydraulic quick attach and air conditioner

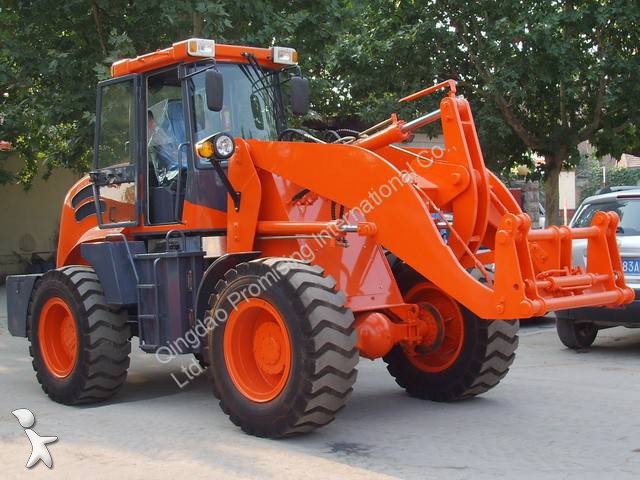

Compact Wheel Loader ZL28F
Technical Specifications:
1. Rated Load: 2800kg
2. Operating Weight: 6200kg
3. Rated Bucket Capacity: 1.4CBM
4. Bucket Width: 2150mm
5. Max. Breakout Force: 64KN
6. Max. Tilt Angle of Cabin: 30deg.
7. Max. Dumping Height: 3500mm
8. Max. Dumping Reach: 1300mm
9. Raising Time: < 6.0s
10. Min. Ground Clearance: 380mm
11. Overall Dimensions (L x W x H): 6570x2200x2850mm
12. Min. Turning Radius: 4800mm
13. Engine Model: DONGFANGHONG YT4B2Z-24 Turbocharged Engine
14. Engine Type: Four-cylinder, Inline, Water-cooled Evaporative, Four-stroke Diesel Engine
15. Rated Engine Power: 74.9kW
16. Rated Engine Speed: 2400rpm
17. Min. Fuel Consumption Rate: 210g/kW.h
18. Transmission Mode: ZL280 Hydraulic Torque Converter
19. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
20. Max. Speed: 25km/h
21. Mode of Axle:ZL20 Hub Reduction Drive Axle
22. Wheel Tread: 1650mm
23. Wheel Base: 2600mm
24. Drive Mode: 4-wheel Drive
25. Hydraulic System Working Pressure: 20Mpa
26. Hydraulic System Working Pump Type: Gear Pump
27. Service Brake: Foot Pedal Vacuum Booster, Air over Hydraulic Caliper Disc Brake on 4 Wheels
28. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake
29. Tyre Type Specification: 16/70-24-16PR
30. Front Tyre Pressure: 0.40Mpa
31. Rear Tyre Pressure: 0.35Mpa

Note:
1. All photos are for reference only.
2. Machines shown may include optional parts.
3. All specifications and design characteristics are subject to change without prior notice.
